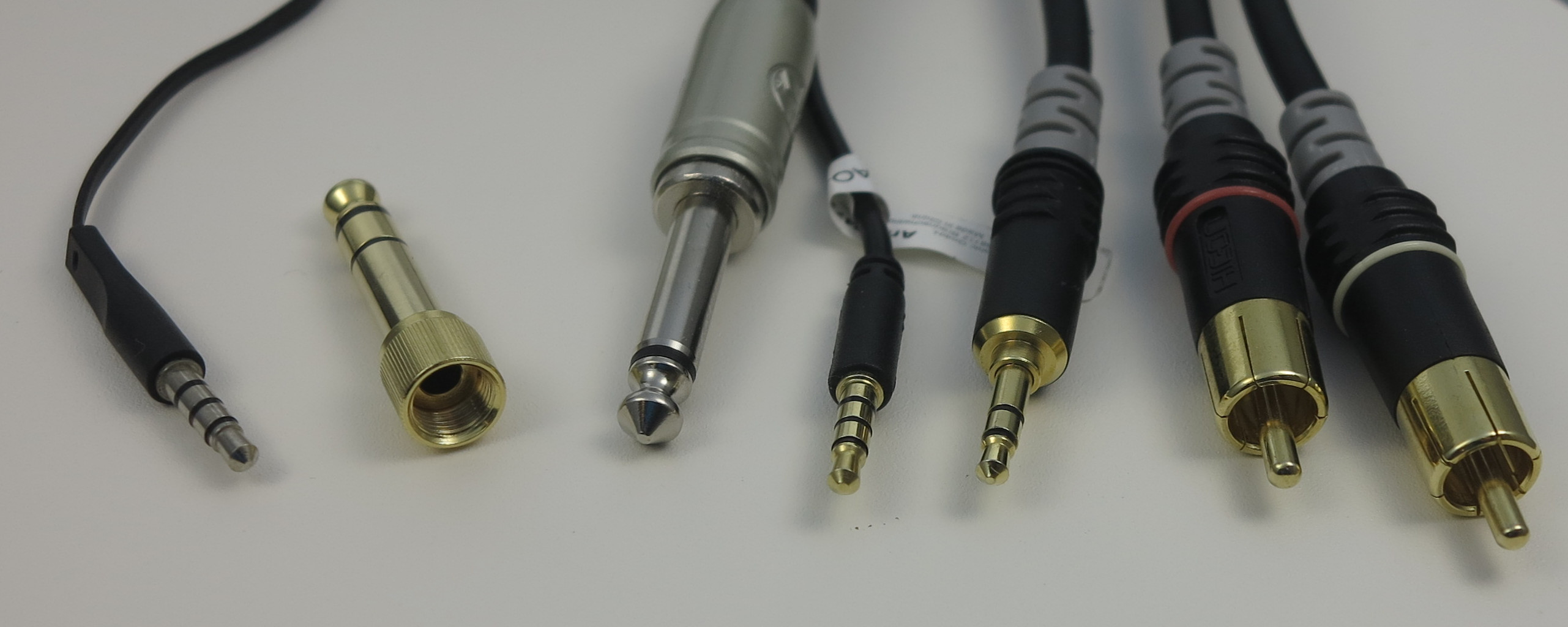

  • Audio Cables and Plugs
  • Youlean Loudness Meter
  • OBS Multi-Track Recording
• Applications
  • Makefile for youtube-dl
  • Audacity and Room Reverb
  • UiPath Robot Process for YLM Automation
  • DaVinci Resolve Fairlight Audio Page

Preface

We have been trained in presentation techniques and rhetoric, but for the post-pandemic world the basics of “how to sound good online” is still new territory. So when YouTuber Anders Jensen asked a question about “audio” in LinkedIn I gladly threw some lessons-learned from the past years at him. If these pre-released key takeaways of our upcoming online event are unfamiliar then join us on February the 25th! Registration does not cost anything and after the event no one will try to sell anything to you.

My name is Christian Prior-Mamulyan and I would be glad to see you in the online event!

A flipped classroom … aims to increase student engagement and learning by having pupils complete readings at home and work on live problem-solving during class time. … With a flipped classroom, students watch online lectures, collaborate in online discussions, or carry out research at home, while actively engaging concepts in the classroom, with a mentor’s guidance. Source: Wikipedia entry for “Flipped_classroom”, visited at 2022-02-13

Key takeaways

Good sound for webinars or video conferences starts at the beginning of an audio signal chain with the room sound and the microphone. The room sound is greatly influenced by reflective, absorptive and diffusive qualities of the materials within. The microphone’s polar pattern and frequency response feeds on mic level into the production workflow. A dedicated audio interface solves the analog-digital conversion in hardware; by the way acceptable hardware involved is not wireless. Distributing to YouTube demands for tight control of the normalized loudness and true peak, which can be achieved with compressor, limiter and e.g. the software Youlean Loudness Meter. While doing so an applied EQ (“equalizer”) curve may “fix in post” some deficiencies at the beginning of the audio signal chain. Whether that happens analog at the beginning of the signal chain or digitally in post-production: Audio recording is best understood on the basis of electrical signals and their visual representations like waveforms and frequency spectrums.

Automated Analysis of a YouTube Channel https://www.youtube.com/c/andersjensenorg

Importance of Audio as a success factor Analysis of channel https://www.youtube.com/c/andersjensenorg Remedies Recommended Reading/Watching

Preface

Join Anders Jensen and me on a live session where

• we are going to wrap up first improvements for his video channel and his teaching business
• I share the condensed learning of my past 2 years
• and paint a roadmap for future improvements.

Participants will

• be able to derive actionable ideas from this journey for their own improvements
• distinguish elements of good audio to apply to their own online presence
• rank these by difficulty and affordability
• recognize basic terms and concepts of audio engineering

Goals

• name the YouTube stats for nerds information relating to audio
• predict the YouTube processing ahead of an upload
• differentiate analog from digital components in a recording chain
• rank factors of audio by importance
• Execute a zielführend workflow/timeline of production and post-production

Preparation

Checklists

How it started

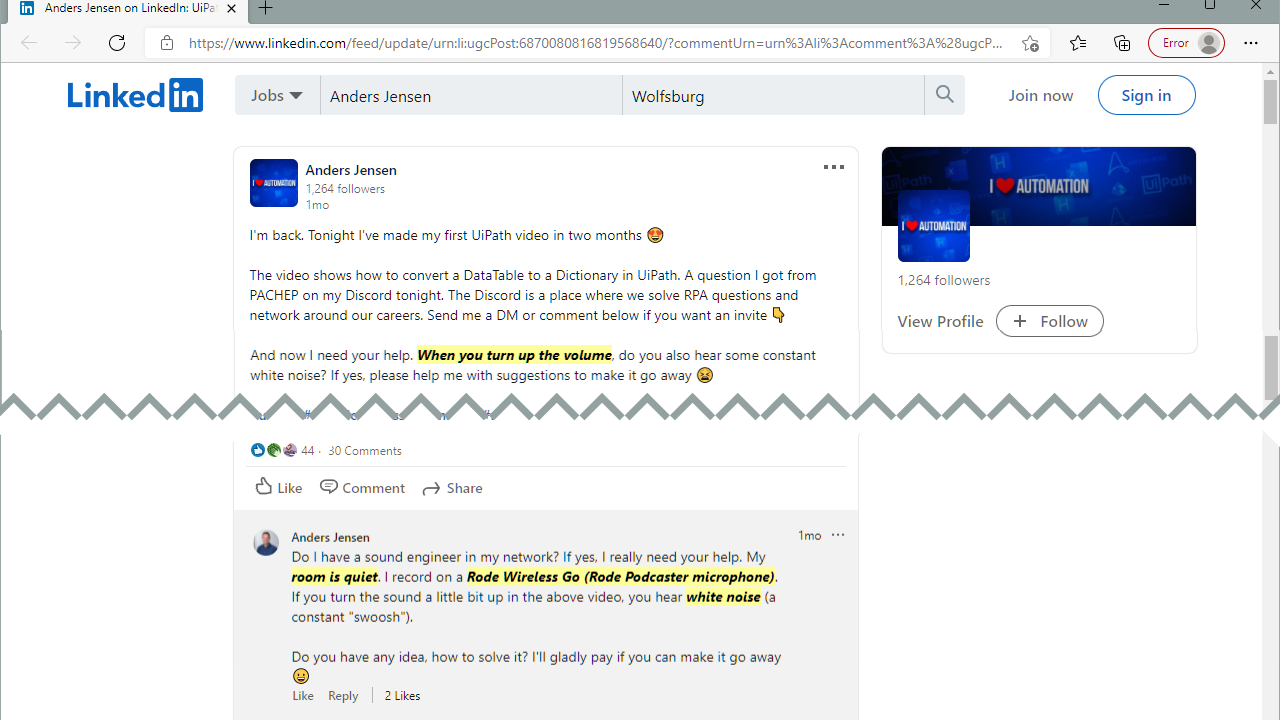

Step 1: Reading the incident report

Let us read this comment on LinkedIn as if we were an IT Supporter and this was an incident:

• The reporter mentions that the volume is being turned up
• The room has a certain qualitiy attributed to it (“is quiet”)
• Off-the-shelf technology is mentioned (The RØDE wirelss Go microphone)
• The quality of the recording is described as having white noise

verfifying the incident report

• Listening to the linked video the room is indeed quiet, but has a reverb like a kitchen or
• The term “white noise” is not 100% correctly used, it is safe to assume that “noise floor” is meant
• The description of the audio signal chain is not complete

ticket triage

• more information is needed,
• contact reporter

Analysis of the YouTube channel

YouTube recommendations

https://support.google.com/youtube/answer/1722171

Sources of Noise

Evaluation of all 350+ videos

Hidden Treasures in the YouTube API and youtube-dl output

Remedies

Eliminate *noise

Checklist

Room Acoustics, Reverberation Time and Clap Test

The journey to improve the audio quality of a recorded narration for webinars or in videoconferences does not start with buying equipment. Because equipment is used inside a room and the room is where it starts.

The requirements to record for webinars are very similar to those of the voice actors, or voice over artists. And they are quite different from music producers or audio mixers. And quite different from high fidelity music listeners. So this kind of narrows down from whom to take advice from. Another good source of advice are audio engineers in churches, by the way. And with a bit of training our own ears are another authoritative judge!

Within the room there will be direct sound and reflected sound from the walls and surfaces. The physical properties of these surfaces make or break a good room acoustic! Only so-called anechoc chambers have no reflected sound and they are not a good thing to strive for, by the way.

The reflected sound will hit our microphone again and decrease the quality of our recording. This reflected sound is THE most important aspect that needs to be controlled. Worst case is to sit between two hard walls which reflect our spoken word multiple times into the microphone until it dies down in volume.

And let’s not forget that there is a reflective ceiling, too!

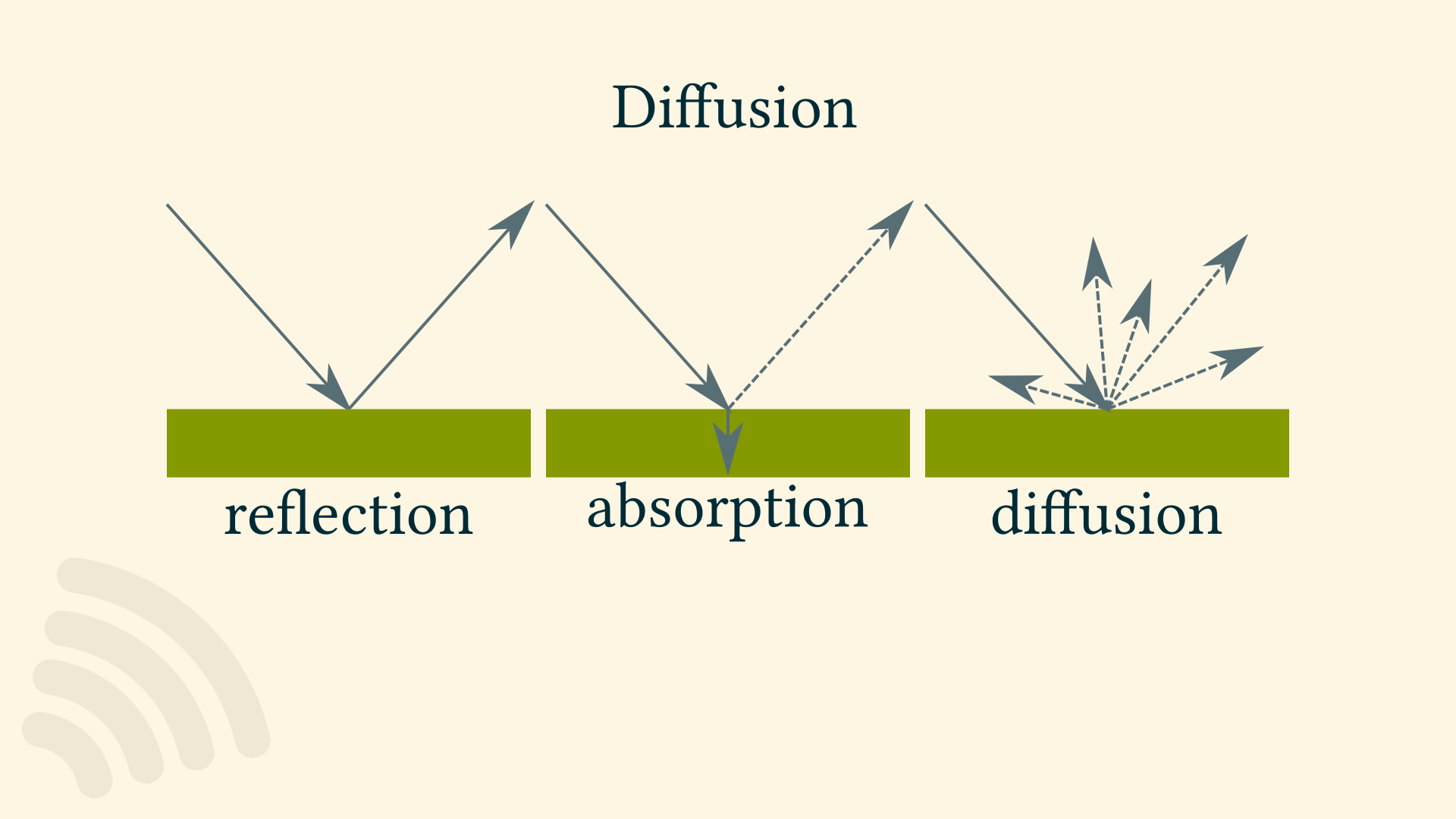

To reduce reflections both absorption and diffusion will improve the room acoustics. Examples for absorptive materials are:

• acoustic foam
• furniture
• curtains
• rugs
• acoustic bass traps and of course
• sound blankets

Diffusive materials are

• bookshelves
• sound diffusors

A measurable property of the room is its reverberation time, which can be measured in according to ISO standards – or performed with simple tools which is good enough in our context.

First, what is exactly meant with reverberation time?

Reverberation is the acumulated reflection of sound. It is what we hear in a bathroom. Reveberation time is the time it needs to fade away.

Most common method is to measure the RT60 which is the time in seconds until a loud sound decays by 60 decibels.

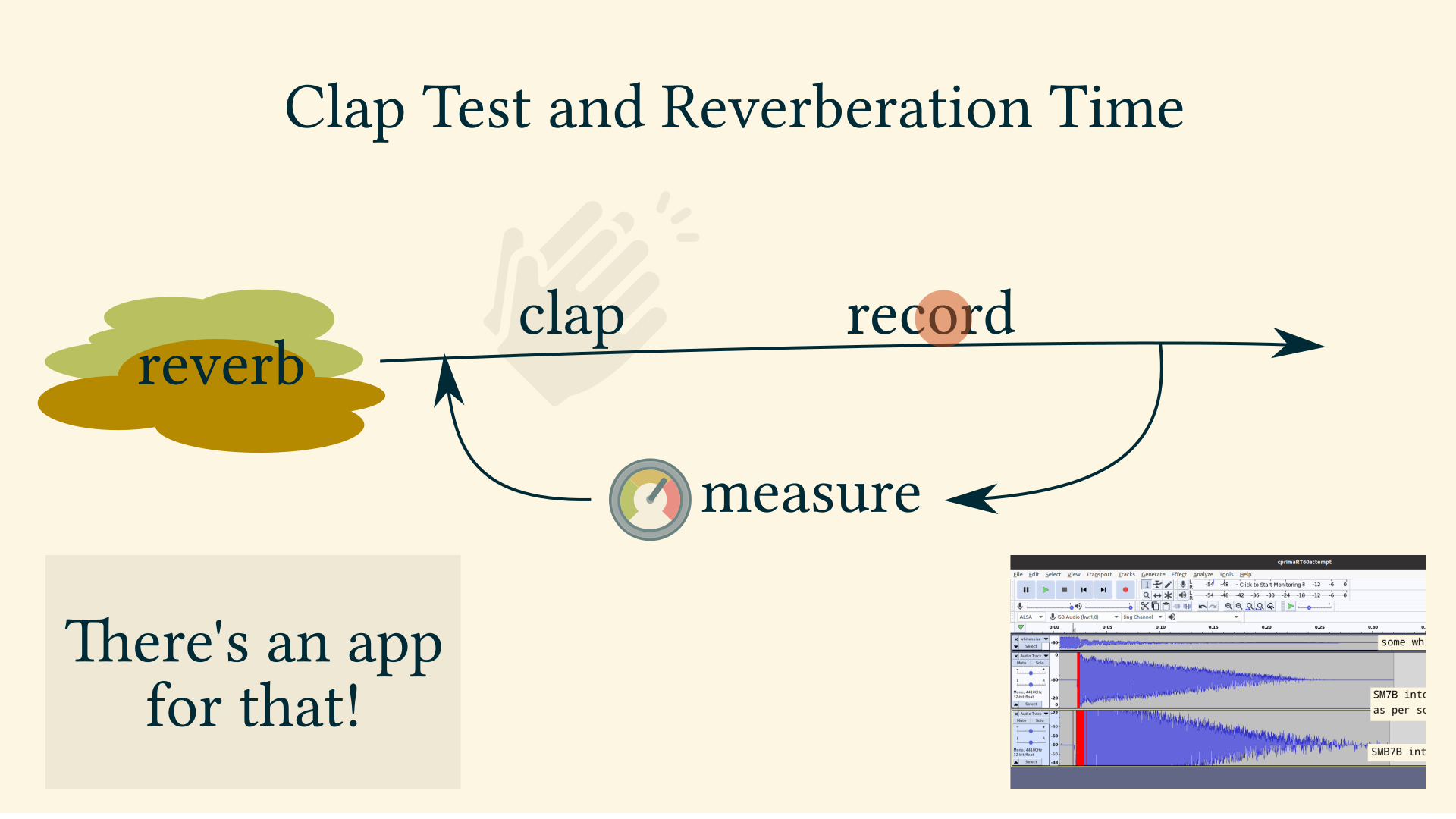

All this is another way of saying: Do a clap test, there is even an app for this!

Either the app or our own recording with our existing microphone into a software that displays a waveform will give us a measurement in seconds.

Then we do a few improvements, and measure again, and listen to our recording again.

In my room I have both hard and absorbant materials. But as the sound of my voice does not bounce back from the hard surfaces into the microphone I have not negative effect by the hard wooden cupboard doors. So a good room for audio recording does not need to be covered in foam all around!

The biggest problem of my room is that the heating pipes transmit sound from the teenagers room underneath. Reverberation time does not fix THAT. Maybe I will give them a gamer’s headset next christmas! ;)

Going by sich an (inofficial) RT60-like measurement means that it is easy to find out when to stop improving the room acoustic, and focus on other aspects of good audio in webinars!

Resources

https://www.nti-audio.com/en/applications/room-building-acoustics/reverberation-time

http://www.larsondavis.com/learn/building-acoustics/Reverberation-Time-in-Room-Acoustics

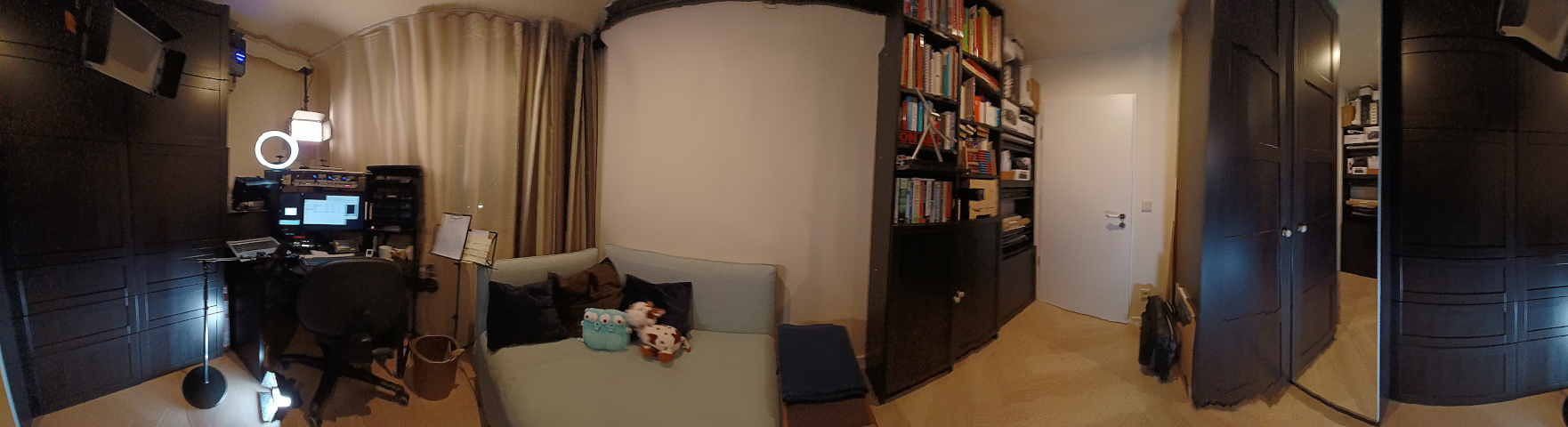

my room

https://imgur.com/a/NHX2XGe

Audio Settings on Windows

Checklist

Loudness GUI

Controlling the loudness during the duration of a recording is a standard workflow in videoproduction.

Here a overview of commonly implemented GUI graphical user interface functionality is shown.

This video shows the software Davinci Resolve.

This video shows the software Audacity.

To make a future edit as easy as possible it is a good idea to work on a copy of the audio track.

There is a handle to change the level of a single clip with the mouse.

The whole track also has a level, here adjustable by a slider and direct entry.

A double click resets the setting.

The beginning of the clip may get a Fade-In. And the end of the clip may get a Fade-Out.

But now the most important part:

Along the timeline at desired positions “keyframes” are inserted.

Each keyframe may get an individual level,

• either by dragging it with the mouse,
• or by a slider,
• or direct entry.

In between the keyframes the software calculates the intermediate value, by default with a linear algorithm.

Every program with more than just a basic feature set will also offer an ease-in and/or ease-out influce for finer control of an otherwise abrupt new state. This software implements this feature with Bezier curve handles. Although for audio projects this particular control it is less important than in – for example animation.

Recommended Reading/Watching

Checklist for All Things Audio

To reduce complexity a lot can be learned from the aviation industry: Their checklist culture is outstanding and based on a very easy to read tabular format: Arranged in a “Item” and “Condition” heading, the item to be checked is listed with the desired condition

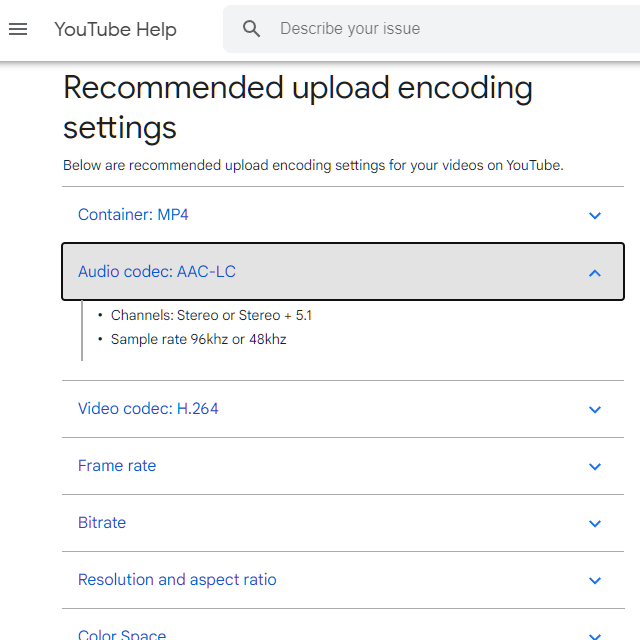

YouTube Recommended upload encoding settings

Checklist

knowledge, facts, data

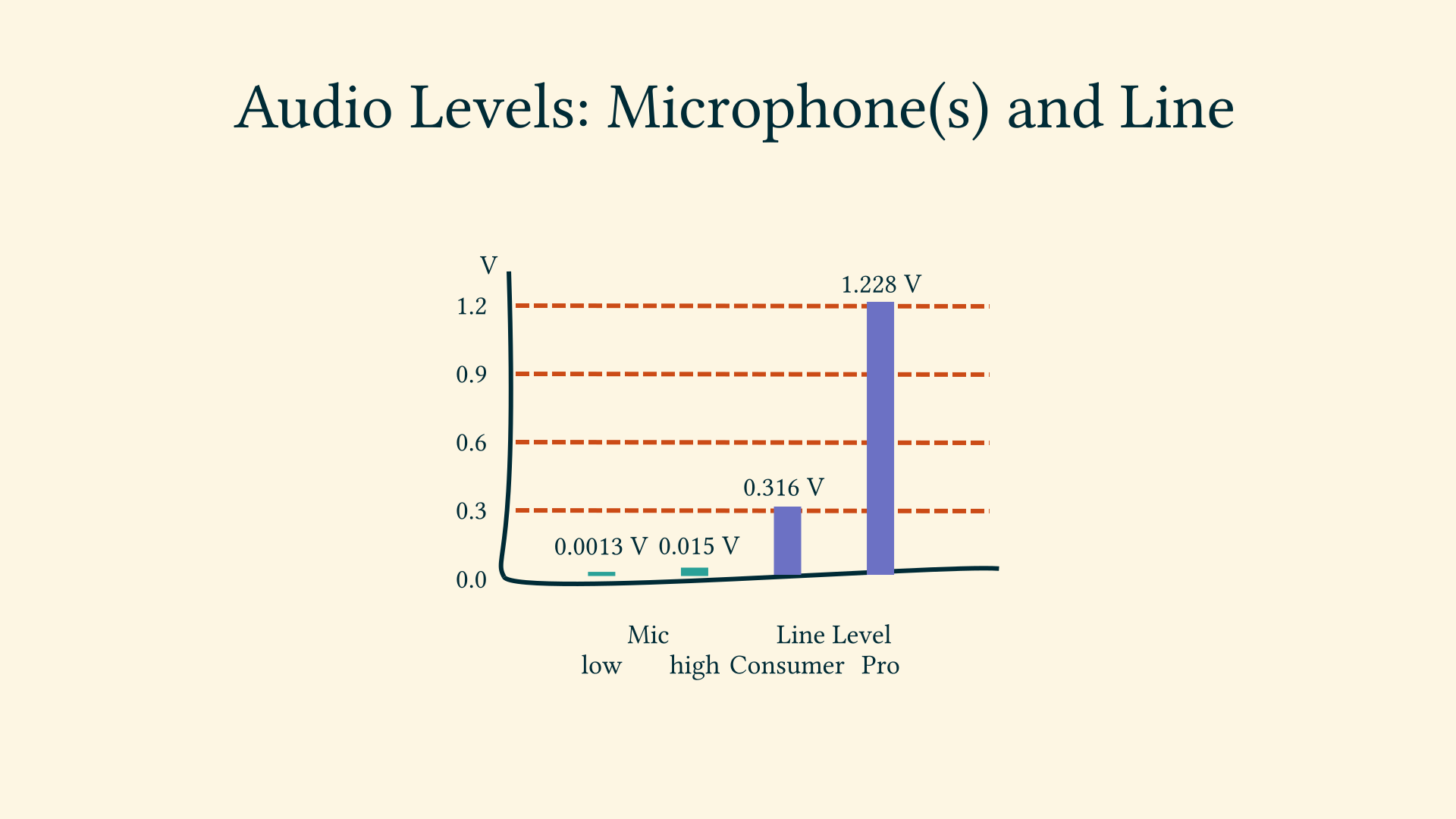

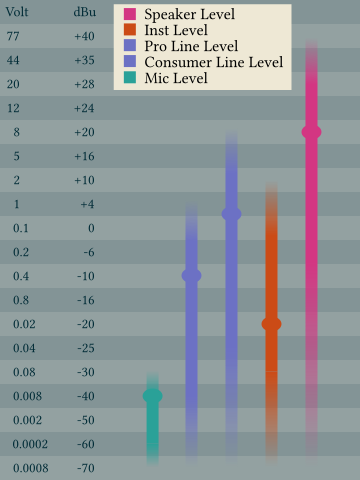

Audio Signal Levels

Using a microphone with a computer is actually an interesting mix: Any digital recording actually starts and ends in the Analog Domain of the physical world, and digital is only the middle part. Both the microphone and the loudspeaker are analog devices.

And a microphone produces at its core a continous electrical signal, done by converting vibrations into electrical energy, and a very low signal that is: The result is an induced voltage of a few millivolt – that is thousandths of a volt. This is very LOW!

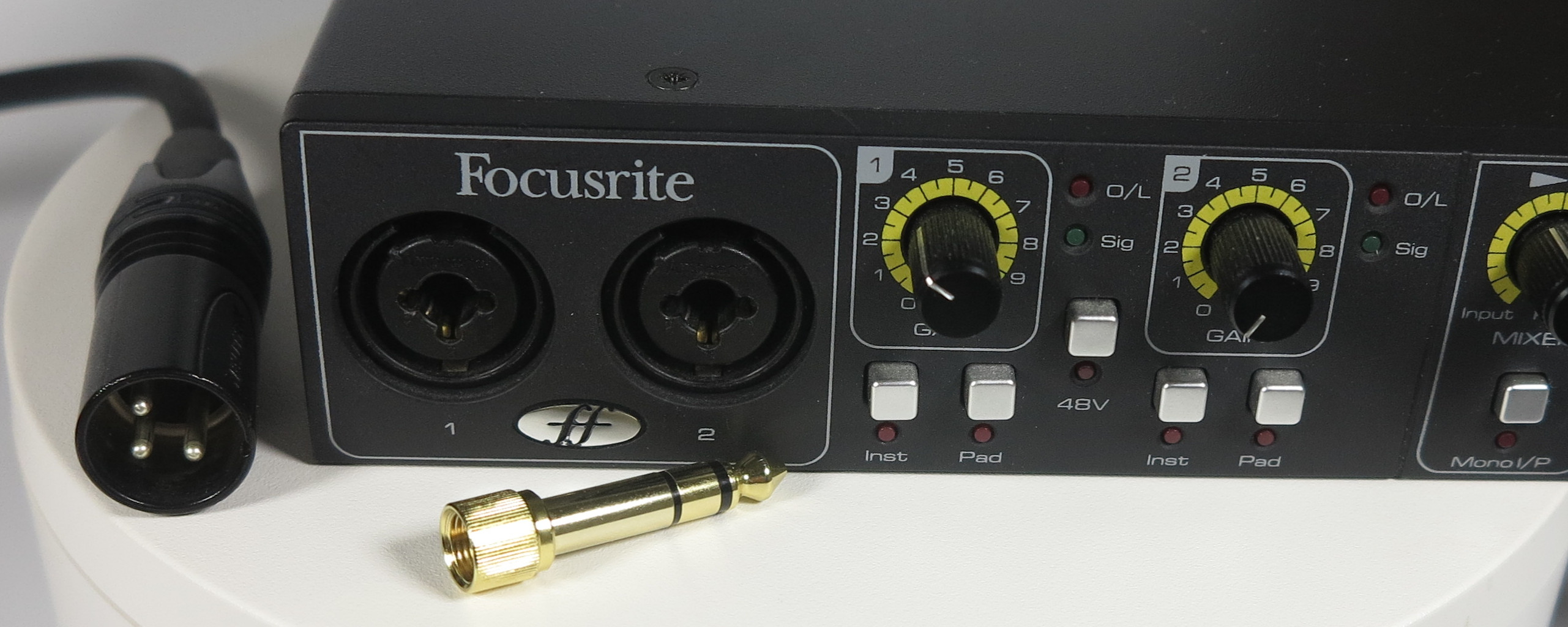

In our webinars and YouTube videos signals are passed between audio equipment on

• microphone level and
• line level (in its consumer line level variant)

It is the functionality of

• either a pre-amplifier and
• the audio interface

to raise the mic level to line level, which is suitable to pass signals between equipment.

Sometimes we see on equipment the label “instrument level”, this is slightly below consumer line level.

All this gives us a hint that a microphone is best understood with the mindset of an electrical engineer.

The Audio Frequency Spectrum

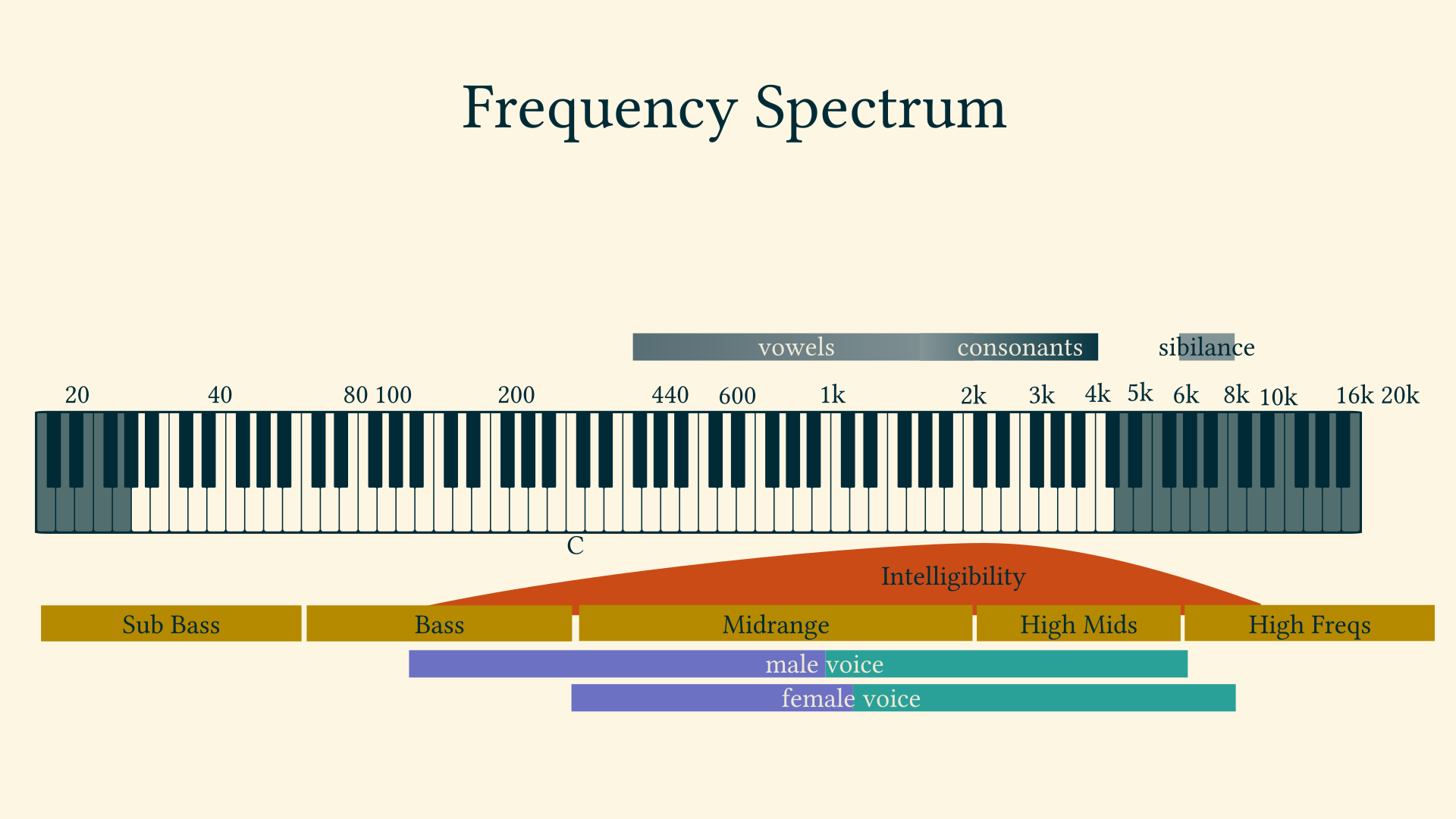

This audio frequency spectrum shows the range of frequencies that the human ear can interpret. As a rule of thumb we hear at maximum from 20 Hz to 20.000 Hertz – or 20 kilo Hertz.

As it is a logarithmic scale the higher numbers are better visualized with the octaves of a piano keyboard.

Our speaking voice has three frequency ranges that need to be understood;

1. Fundamentals. The fundamental frequencies of speech occur roughly between 85Hz and 250Hz.
2. Vowels. Vowels sounds contain the maximum energy and power of the voice, occurring between 350Hz and 2KHz.
3. Consonants. Consonants occur between 1.5KHz and 4KHz. They contain little energy but are essential to intelligibility.

Although we might hear in that frequency range the human voice is located in a smaller range. Male voices typically from 200 to 6000 Hertz, and female voices from 400 to 8000 Hertz.

A problematic range is between 5000 and about 8000 Hertz, where the so-called sibilance occurs. Sibilance is that harsh sound that can happen during consonant syllables (like S, T, and Z). Techniques like a De-Esser try to cut very narrowly within this frequency band.

By the way, the reason why we record in 44.100 Hz or for videos 48.000 Hz is that this is 2 times 20.000 Hz plus a bit of extra for the sampling filter to work. This is based on the Nyquist Sampling Theorem.

Loudness

Do you remember the times when TV commercials were so much louder than the actual TV content? That was the time when the human perception of loudness was not taken into consideration.

The signal level on microphone or line level are measured with a technical reference, and the loudness innovation was to measure according to the human perception. This started at about 2010.

Nowadays streaming service like Spotify and – you guessed it – YouTube use the loudness across a while song or video to adjust loudness. YouTube actually only lowers the loudness, and protects users with headphones that way.

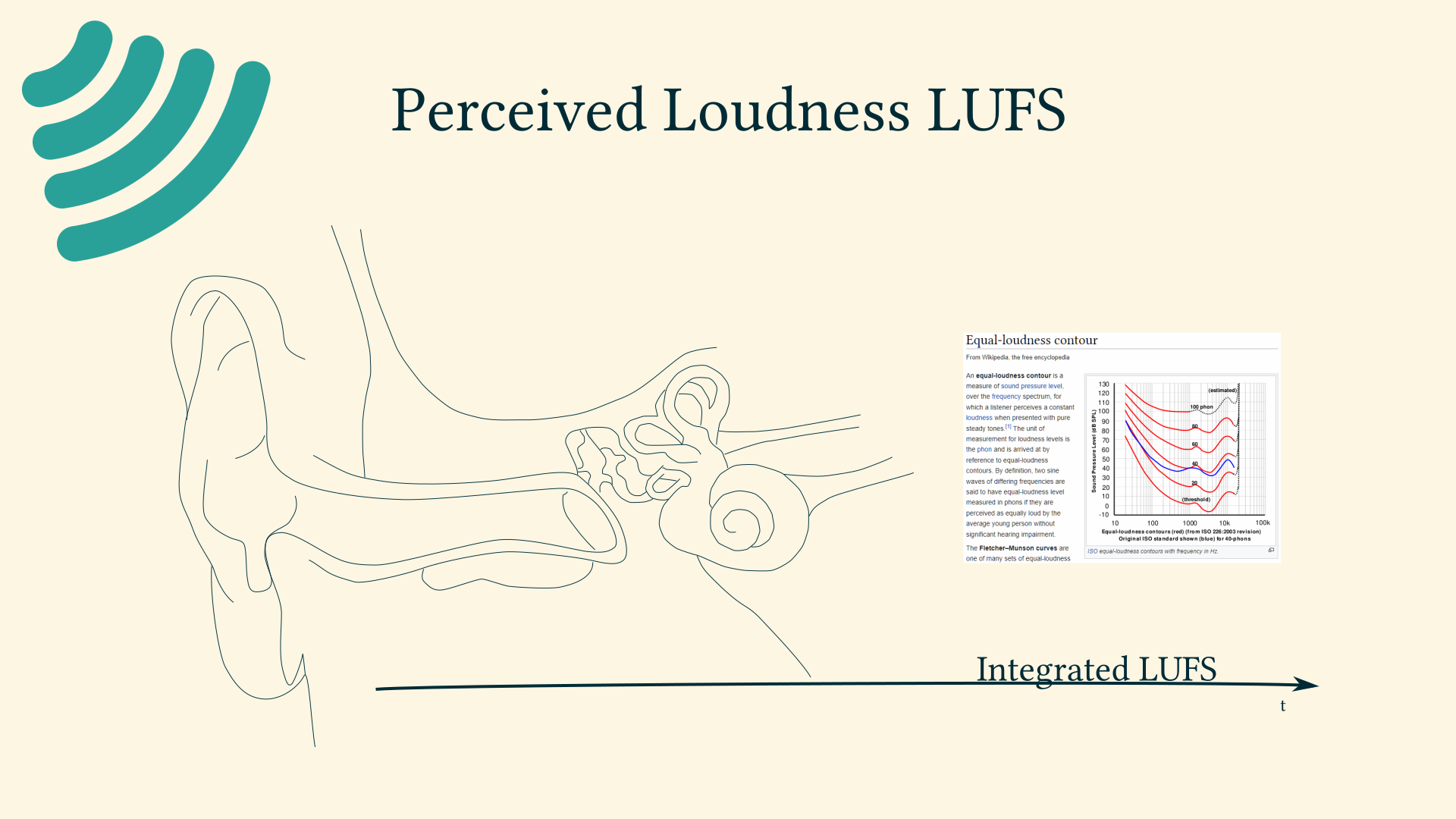

Based on what is called the Fletcher Munson Curve of human loudness perception a loudness measurement is a statistically determined value over time, either

• short-term or
• integrated, that means over for example a whole YouTube video.

Software like Youlean Loudness Meter analyze the audio and returns a graphical representation.

Why is this important?

Because when the production loudness did differ from the target platform’s rules then it makes sense to adjust the distribution loudness, to not leave it up to the streaming service to mess about with the audio.

YouTube for example will

• turn down videos that are integrated – which mean over the full duration – louder than -14dB LUFS (which is the ludness unit).
• but YouTube will not turn the loudness up if it was too low to begin with!

The loudness measurement makes our – hopefully many – recordings comparable comparable between each other.

Methods to influnce the loudness of a recording are

• the compressor or
• the amplifier

The loudness measurement also helps us to adjust an interview partner to the same loudness as the host.

This knowledge could be applied to for example by making a conscious decision between a production loudness and a distribution loudness.

Further reading

Stats for nerds: https://productionadvice.co.uk/stats-for-nerds/

How to Edit a Video to Achieve Good Audio Loudness on YouTube? by Youlean - Julijan Nikolic https://youlean.co/how-to-edit-a-video-to-achieve-good-audio-loudness-on-youtube/

Technical Document AESTD1008.1.21-9 (supersedes TD1004) Recommendations for Loudness of Internet Audio Streaming and On-Demand Distribution September 24, 202 https://www.aes.org/technical/documentDownloads.cfm?docID=731

Tools

Online tool: https://www.loudnesspenalty.com/

Youlean Loudness Meter 2 (Free and Pro) Mastering The Mix LEVELS (Paid) iZotope Insight 2 (Paid) Waves WLM Plus Loudness Meter (Paid)

Reading Microphone Datasheets

For the novice a less readable part of datasheets of microphones might be the graphs about polar patterns and frequency responses. But that part is sooo important!

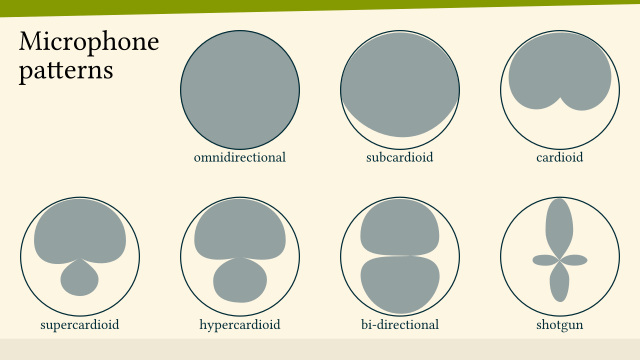

Polar Patterns

The polar pattern depicts the sencsitivity to sounds arriving from different angles. A polar graph uses angles as reference system, different from the more ubiquitous cartesian graphs with their x, z and mazbe z axis. The practitioner can read from a microphone’s polar pattern graph how to best position the micriphone so that it does not pick up for example typing noise from the keyboard.

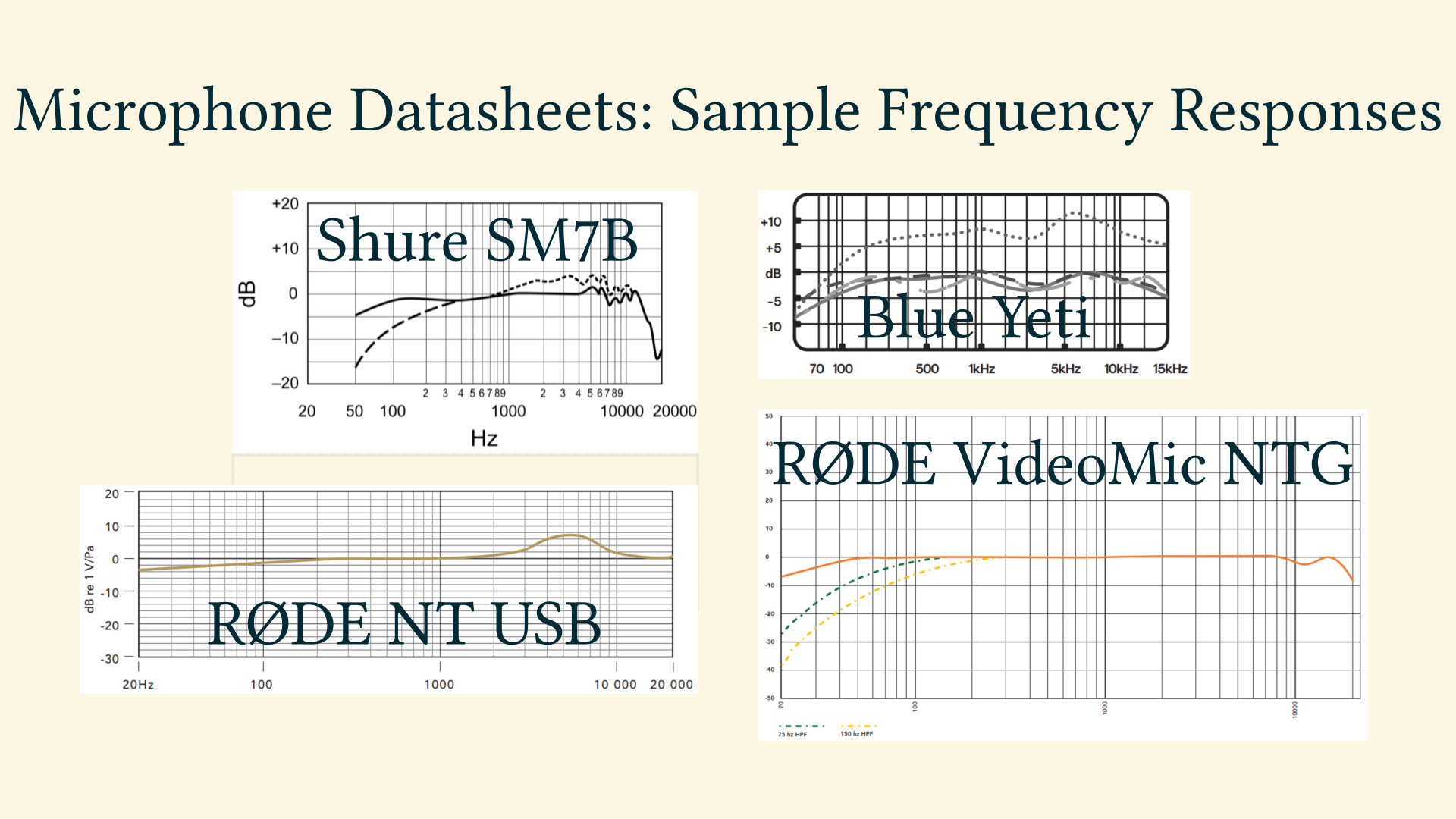

Frequency Responses

With the microphone at the very beginning of a recording signal chain it is highly advisable before doing any later EQ “equalisation” changes to the frequency spectrum to study what the microphone did apply to the frequencies at the very beginning. If the practitioner knows that the microphone has what is commonly referred to as presence boost in the (roughly) 3 kHz to 6 kHz range: Then there will hardly be any need to further boost that range in post production.

The polar patterns also show in raw data what otherwise might get marketing terms applied to, like “Exciter” oder “ContourFX”.

Skills, Workflows

Common GUI Elements for “Volume”

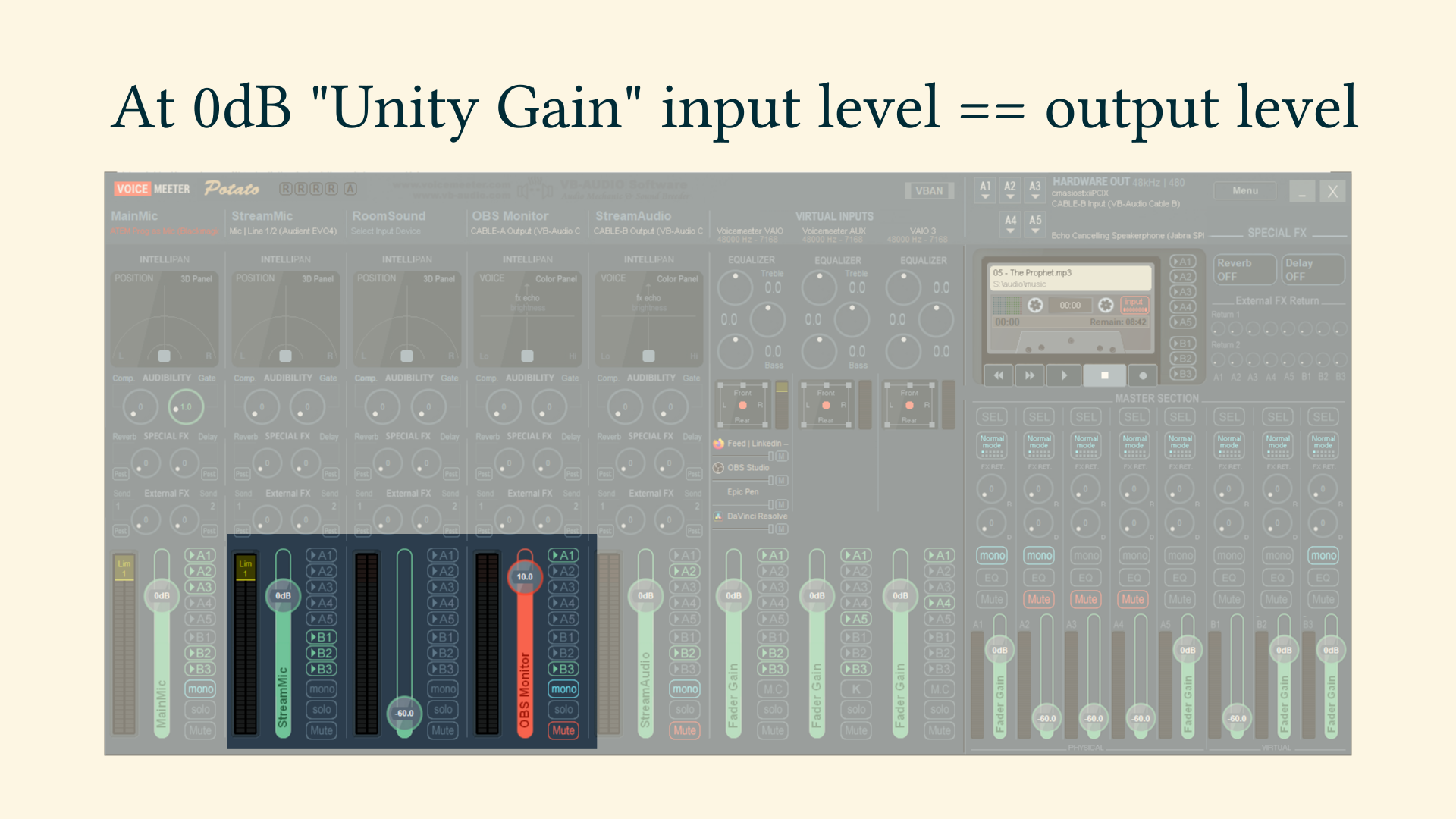

Unity Gain

In the audio signal chain the term “unity gain” is used to describe that

• the input level is the same as
• the output level

If for example 0.8 Volt go in, at unity gain 0.8 Volt go out. Just as if the device was not in the audio signla chain at all!

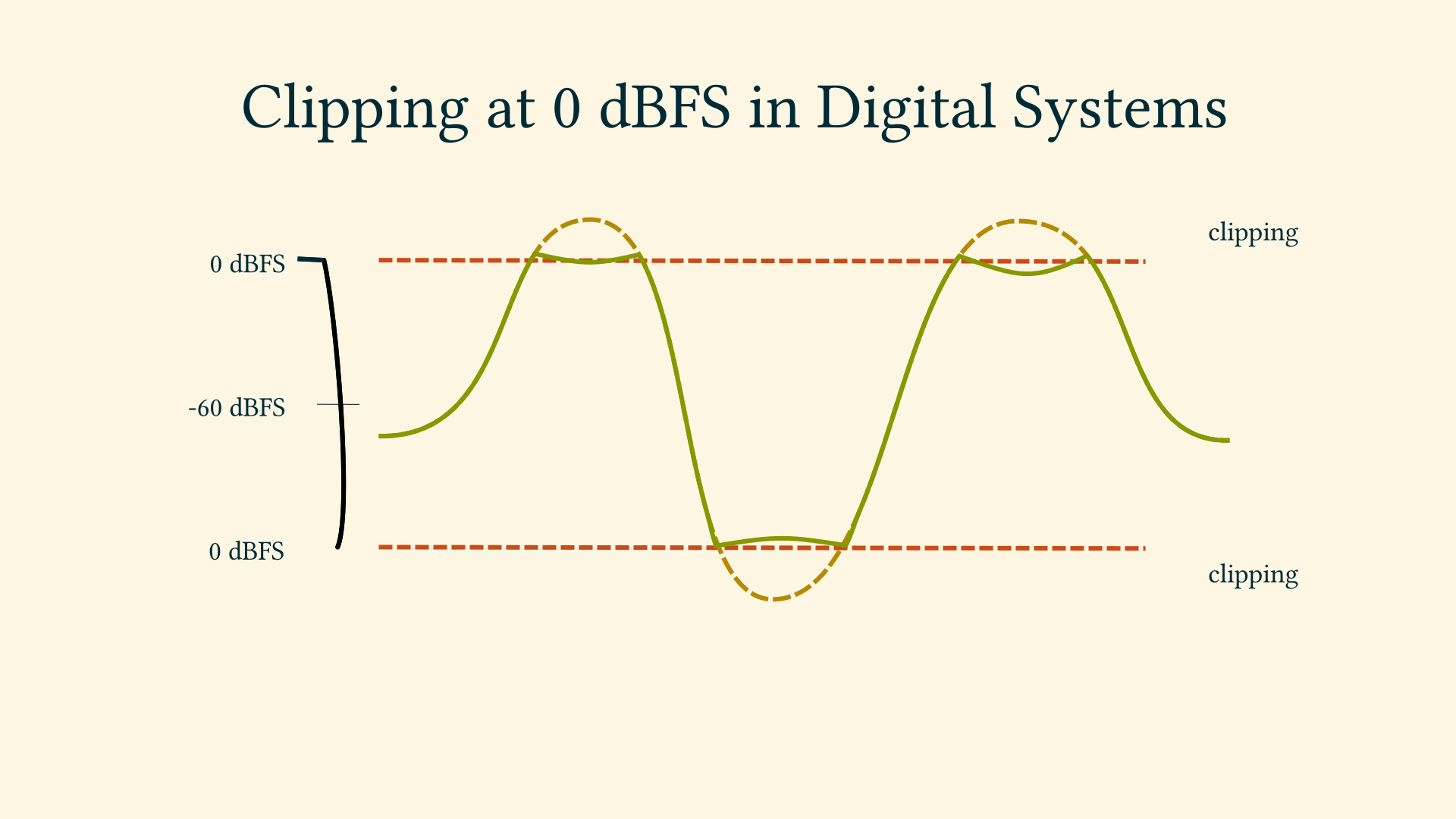

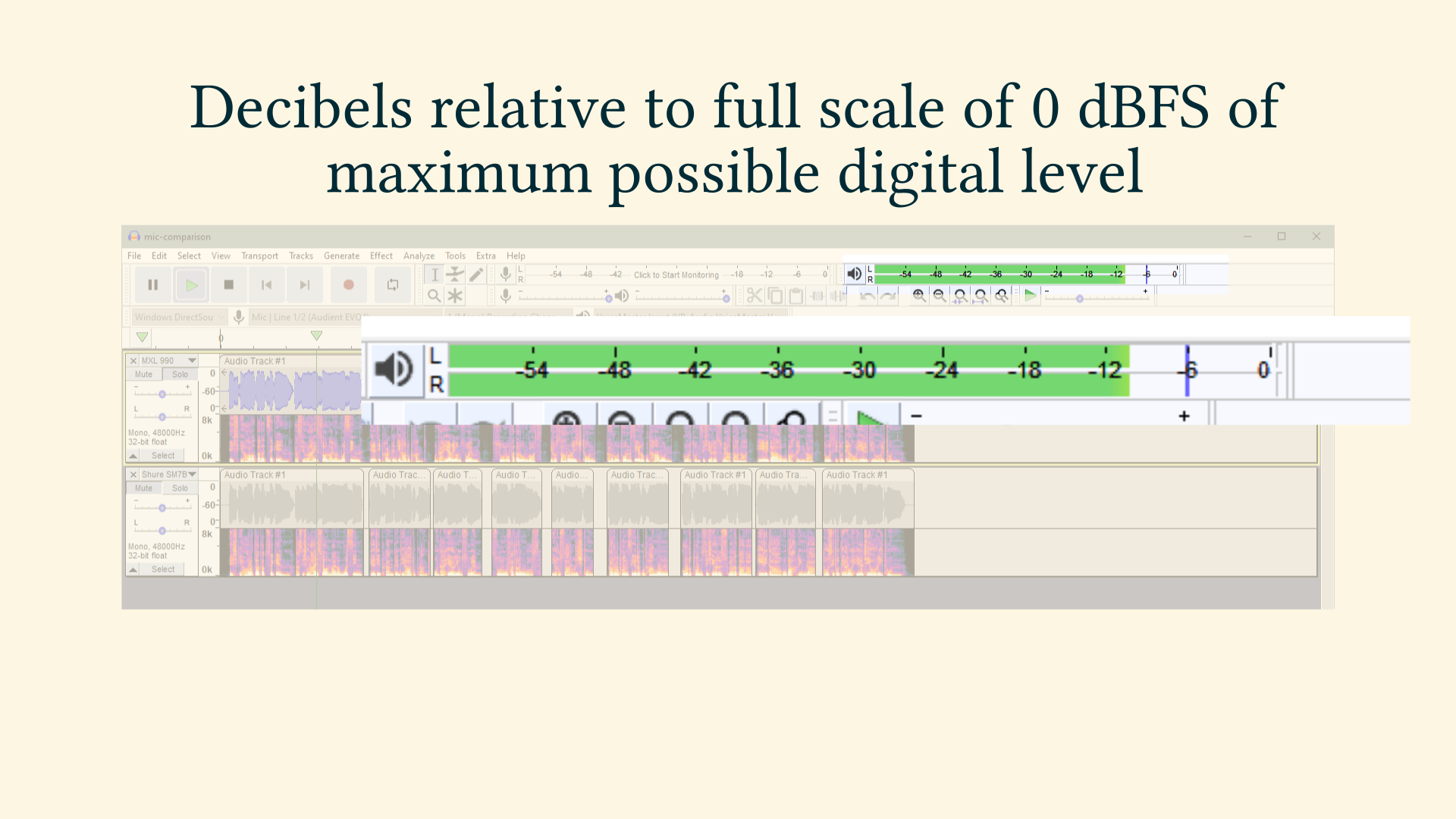

dBFS Decibel Full Scale

In digital audio systems, there is a defined maximum level the system can handle. The level of 0 dBFS Decibel Full Scale describes this maximum level.

Beyond this level clipping occurs.

Types of Audio Editing

7 types https://audioaural.com/what-are-the-7-types-of-audio-editing-techniques/

• amplification: increase the volume
• compression: change the dynamics
• limiting: limit sound above a certain level
• panning: move the sound in and between left and right stereo channel
• equalization: changes to the frequency spectrum; low-cut, high-cut, bell boost, notch
• normalization: When the level of a track is increased so that it reaches a norm.
• stereo imaging: the manipulation of an audio signal within the 180° stereo field

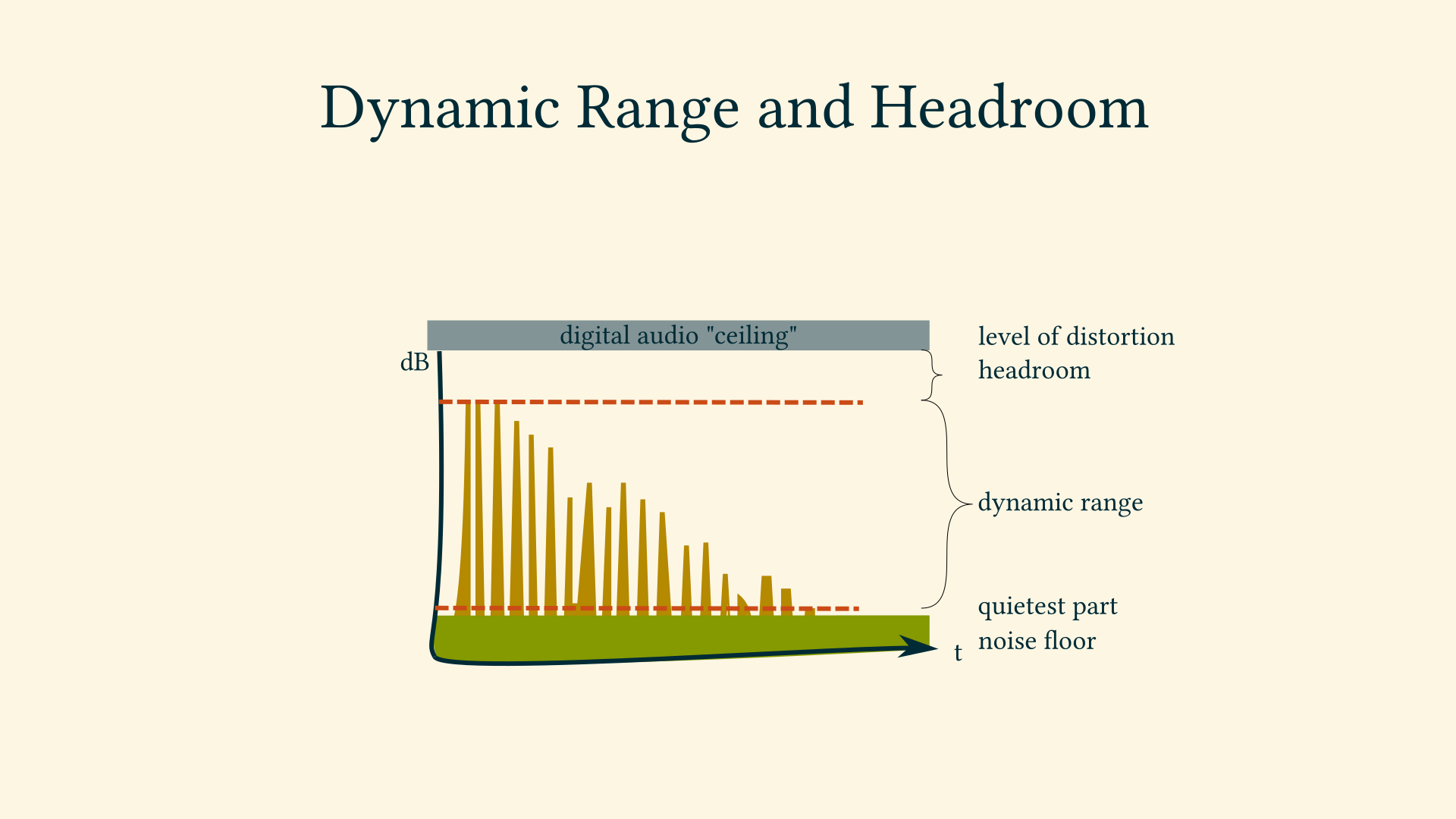

In the context of audio, Dynamic Range is the difference in Decibel between the quietest and loudest part. It can refer to both the dynamic range of the audio track(s) in a video, or the capabilities of a signal chain consisting of hardware and software.

The quietest part of a signal chain is called noise floor and each piece of equipment has one – even a cable.

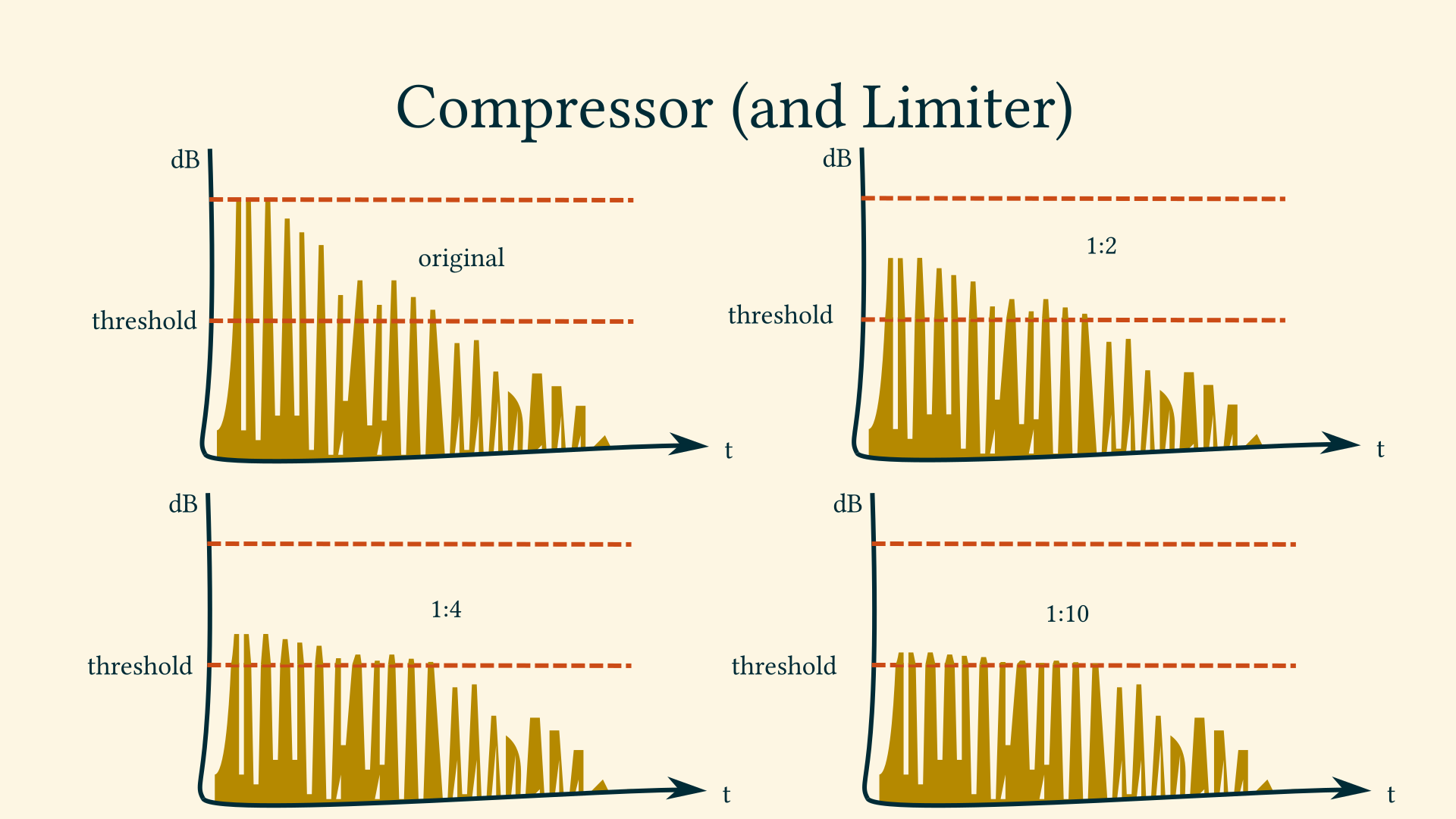

The dynamic range can be altered by compression and expansion: Compressors (and in its extreme form Limiters) reduce Dynamic Range, while Expander (and in its extreme form Gates) increase it.

Expander and Gate

A Gate, or noise gate, is like an inverted compressor: Instead of limiting signals above a given threshold, the gate lowers a signal below a given threshold.

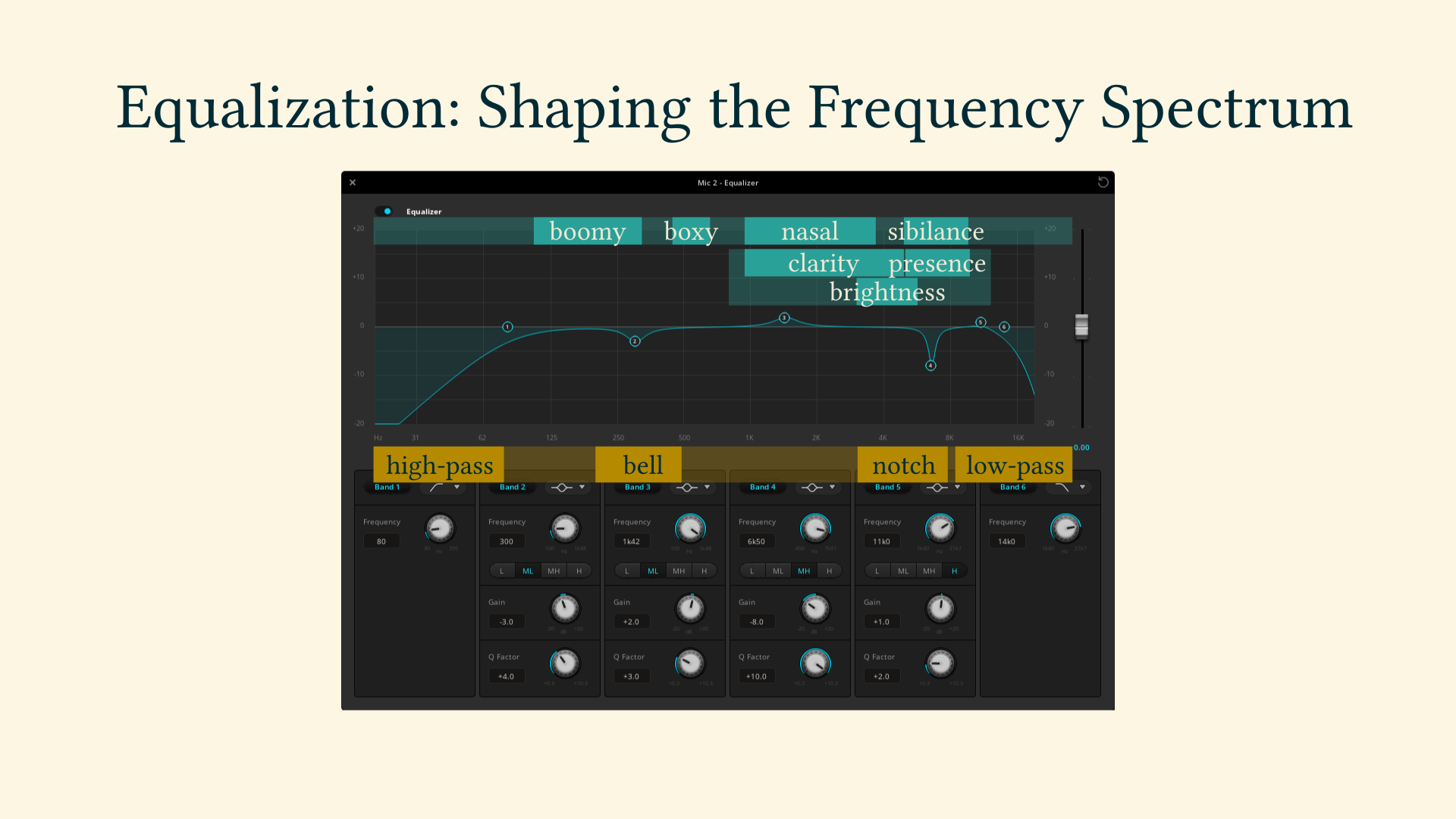

Equalization: Changes to the Frequency Spectrum

In the audio workflow there are no recipes but rather only strategies regarding equalization.

Getting the right microphone for the voice and recording it well should mean little or no EQ is needed.

But if there are unwanted frequencies they could be cut. And if there is not enough of some other frequency its range could be boosted.

Any type of such work shold be done with at least studio-grade headphones.

And instead of following recipes from the internet the whole signal chain should be taken into consideration, for example the microphone’s frequency response chart.

In the postprocessing workflow there could be two equalization steps:

• After a gate
• there might be EQ cuts
• then the compression
• followed by EQ boosts
• and finally a limiter and/or normalization to distribution loudness

Electric Signals, Noise, Discretization

Why is the microphone such a strange thing for us IT guys?

As programmers, IT technicians or system administrators we are used to highly complex systems, comprised of hardware, operating system, programming languages with their respective runtimes or interpreters, peripheral devices and software.

These machines are based on basic physical laws, electrons and their digitization.

To illustrate the various disciplines in physics, electrical engineering and computer sciende let’s have a look at the blackboard in the lecture “Circuits and Electronics” by Professor Anant Agarwal at the Massachusets Institure of Technology: About half a dozen disciplines fill his blackboard, and on the left we are dealing with simple electronic circuits and their behaviour that can be expressed in Volt, Ampere and Ohm.

Here is a visualization of the effect of noise when transmitting a combination of two signals.

Coming from the high-level digital world on the right side of the blackboard we IT people can dive into the analog world for example when experimenting with an Arduino or the GPIO pins of a Raspberry Pi.

Looking at the example again we see that just to determine if such a signal expresses a binary “on” or “off” poses a challenge – as everybody knows who tried to implement a bare-bones shutdown-button for the Raspberry Pi.

This is pretty for from the usual “Hello World!” example in our favorite programming languages!

Now I am coming back full circle:

The microphone is such a basic electrical device, producing electrical signals measured in 1/1000 of a Volt.

Here is a chart of the signals strengths with the equivalents of Volt and Decibels referenced in Voltage. (Yes, there is a straightforward conversion!) The microphone “transduces” a pretty low signal! One millivolt plus minus a half!

And on the way to our software on the operating system of our choice we need to traverse the whole blackboard of Professor Agarwal!

And on the way we inevitably are dealing with the same problems as before, noise and / or the need to digitize the signal (not only into binary 1 or zero but commonly into 16 bit, er even 24 or 32 bit).

All this is just my long-winded approach to re-state best practices in dealing with audio recordings from a microphone:

Produce the cleanest possible signal, raise it as quickly to line level, and use hardware dedicated to high quality conversion from the analog world to the digital world.

Next time you are using a microphone, remember the picture of noise sitting on top of a signal, and remeber the blackboard of Professor Agarwal!

//todo: incorporate analog playout //analog reconstruction of two consecutive digital samples peaking at 0 dBFS may result in an analog wave that peaks higher than either of the samples //https://www.mixinglessons.com/dbtp-decibel-true-peak/

Off-The-Shelf Technology

Audio Signal Chain

To sound good in webinars and on YouTube many small adjustments need to be made, and it is best to identify the components involved – so they can be adressed individually.

For the sake of completeness the room where we record should be put on the list first. As it will have sounds coming in from the outside, and sound reflecting within its walls.

The we obviously will talk into a microphone, one of the many types and models. A microphone converts soundwaves to analog audio signals.

The cable connecting it will have 2 or three connections, and the connector will determine where we can plug it in. AND the cable will give us a hint about the level.

Within the cable run there is the possibility to insert an additional microphone pre-amplifier.

Preferrably a standalone audio interface will give us the microphone pre-amplification, knobs to turn the gain level, and will transform the analog signal into a digital.

By the way, a USB microphone “just” has a built-in audio interface.

On the computer that an audio interface is connected to many things can happen to the signal, like

• processing it with a digital workflow
• embedding it with video
• streaming it to YouTube
• storing it to in lossless or lossy formats

The signal chain does not end there though, let’s keep in mind that the viewer or listener will

Audio Cables and Plugs

In this picture we see a variation of commonly used audio cables.

They can be categorized by the number of signal lines, abbreviated by t for tip, r for ring and s for sleeve.

On the very left we have a 3.5mm TRRS cable with 4 signal lilnes, suitable to transmit a headphone with microphone.

Then we have a very handy adapter from 3.5mm to 6.3mm

Next a 6.3mm TS cable

followed by another 3.5mm TRRS headphone-mic cable.

the last 3 are a cable from 3.5mm TRS to left and right RCA jacks.

The most common cable for microphones are those with an 3-pin XLR jack.

They carry the microphone level into an audio interface and should be kept rather short.

By the way, many audio interfaces have so-called combo jacks, which can take a XLR cable or a 6.3mm cable. In the latter case the audio interface expects line level.

Youlean Loudness Meter

Youlean Loudness Meter is an application or plugin to measure the correct loudness levels for upload to Spotify, YouTube, and more. It comes in a free and Pro version and is developed by a great guy named Julijan Nikolic, that’s where the software got its name from.

It shows the loudness as both short-term as well as intergrated – that is over the diration of the whole file.

And it analysis the true peak levels to indicate dangerously high levels.

It features an export of the generated graphs, not just for the loudness but also the dynamics – which is of use in music production.

I use YLM as an additional Zoom, Teams or Skype participant to monitor the loudness of all participants.

OBS Multi-Track Recording

OBS is a widely used screen recording and streaming software, and is great for not just recording the video part of a pre-produced webinar but is also capable of multi track audio recording.

In the OBS settings for Audio each recording device can be selected or disabled individually. So there is a clear distinction between the audio interface and the system sound.

But to fully utilize this each device should be recorded to an individual track. This is setup via the Audio Mixer and a right-click on a cogwheel icon in the adcancded audio properties.

Best practise is to record all devices mixed down to track one, and then each device into an own track.

Later in postproduction each track can be adjusted individually.

Applications

Makefile for youtube-dl

Any repetitive manual task should be automated, for example the analysis of a whole YouTube channel. For speedy access to the videos the files need to be downloaded to the local harddrive, which is the core functionality of the Python-based commandline program youtube downloader and its improved fork yt-dl.

And a conveninet way to make this whole process repeateble is to write a shell script in the form of a Makefile. To run such files from the Unix world on Windows the WSL Windows Subsystem for Linux can be used.

The Makefile is published as a GitHub Gist https://gist.github.com/cprima/0d331d5a2c366688998071f6b61774fd

Result is that a few commands may be run daily and produce the raw material for an analysis.

Youtube downloader keeps track of the videos already downloaded in the past.

The metadata from YouTube is returned in JSON Format and again Python is a good technological fit to aggregate each individual file into a tabular format. A quick Jupyter Notebook does the job well.

#/**
# * Helper commands to analyse YouTube videos
# *
# * @author: Christian Prior-Mamulyan <cprior@gmail.com>
# * @license: MIT
# *
# * @usage: export YTCHANNELVIDEOURL=https://www.youtube.com/watch?v=iavXywwUh1c
# * @usage: make -e download_audio
# *
# * depends on https://github.com/yt-dlp/yt-dlp
# */

YTCHANNELBASEURL=https://www.youtube.com/channel/
YTCHANNELID=UCPdtz4gd_iYebJFYq9N8pWA
YTCHANNELVIDEOURL?=https://www.youtube.com/watch?v=7UN1xRN24xY
BATCH_FILE=urls.txt
ARCHIVE_FILE=archive.txt
SLEEP_REQUESTS=8
MIN_SLEEP_INTERVAL=8
MAX_SLEEP_INTERVAL=128
SUBTILES_LANG=en
LIMIT_RATE=5M
TROTTLED_RATE=50K
_BESTEALTHY=--limit-rate $(LIMIT_RATE) --throttled-rate $(TROTTLED_RATE) --min-sleep-interval $(MIN_SLEEP_INTERVAL) --max-sleep-interval $(MAX_SLEEP_INTERVAL) --sleep-requests $(SLEEP_REQUESTS)
_WRITEMETADATA=--write-url-link --write-info-json --write-description --write-info-json --write-thumbnail --write-auto-subs --sub-lang $(SUBTILES_LANG)


.PHONY: list_channel_videourls
list_channel_videourls:
	@echo "# pipe the output to e.g. >> $(BATCH_FILE)"
	@yt-dlp --get-filename --no-warnings --quiet -o "https://www.youtube.com/watch?v=%(id)s" $(addprefix $(YTCHANNELBASEURL),$(YTCHANNELID))

.PHONY: download_videos
download_videos:
	yt-dlp --limit-rate $(LIMIT_RATE) $(_BESTEALTHY) --continue --ignore-errors --no-overwrites --output "%(upload_date)s_%(acodec)s_%(asr)s_%(title)s.%(ext)s" --batch-file $(BATCH_FILE) $(_WRITEMETADATA)

Audacity and Room Reverb

A measurable property of the room is its reverberation time, which can be measured according to ISO standards – or performed with simple tools which is good enough in our context.

Most common method is to measure the RT60 which is the time in seconds until a loud sound decays by 60 decibels.

In Audacity, create a new project and add a track.

Start recording and make a short, loud sound that just does not clip, for example by clapping with the hand-

You will see very distinctive waveforms.

Crop to a single one of the claps, zoom into just the waveform and in the timeline you will see the farctions of a second that it tokk the sound to die down.

Then do a few improvements, and measure again!

UiPath Robot Process for YLM Automation

My favorite software for loudness analysis, Youlean Loudness Meter, cannot be automated out-of-the-box. But fortunately any type of GUI automation can be done not just with software from test automation but it is a core feature of RPA software, Robotic Process Automation. And with the aim to analyze the YouTube channel of Anders Jensen, RPA developer and Most Valuable Professional in forum of the software vendor “UiPath” – what would be a better fit than UiPath’s CV activities Computer Vision activities.

UiPath is the world’s leading RPA software company, started in 2015 in Bukarest, Romania and has since seen a rockeetship growth. Part of the capabilities of the development tool “UiPath Studio” are the Computer Visicion activities. Even such hard to automate GUIs like the one of Youlean Loudness Meter can be automated by Computer Vision’s AI-enhanced Click, Type into or dropdown select capabilities. All without having to resort to image scraping.

An efficient anylssis of Anders Jensen’s 350+ video was impossible without this UiPath Robot Process!

DaVinci Resolve Fairlight Audio Page

DaVinci Resolve is a video editor for macOS, Windows, and Linux. It is developed by the hardware manufacturer BlackMagic Design and available in a free and paid version. The free version has traditionally an almost complete featureset in comparison to the moderately priced paid version.

The audio part of the software, called Fairlight page, is a featurecomplete digital audio workstation offering multitrack editing, loudness evaluation, equalization, mixing and all types of audio editing.
